Description

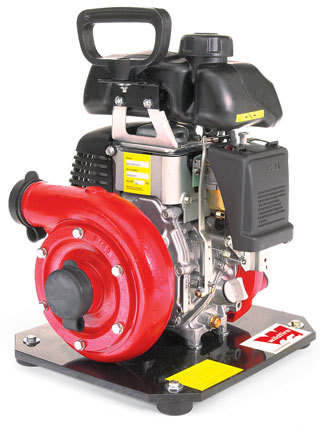

MINI-STRIKER® – Portable Single Stage Fire Pump

This pump unit is designed for use in some of the latest fire control techniques where small lightweight equipment is demanded.

This pump is powered by a small and lightweight 4-stroke engine that meets the current emissions standards of the US EPA and CARB regulations.

The Mini-Striker® unit works well for other applications such as
marine services, irrigation and the application of foam and other fire chemicals.

Engine Specifications
Engine Honda® model GXH50
4-cycle, air-cooled
Single cylinder, overhead valve
Maximum power 2.5 HP (1.8 kW)
Starting system Recoil starter
Ignition system Transistorized magneto
Stroke 1.41″ (36 mm)
Bore 1.65″ (41.8 mm)
Displacement 49.4 cc (3 cubic inches)
Lubrication Oil
Oil capacity 0.26 US quart (0.25 L)
Integral fuel tank 0.32 US gal (1.2 L)

Pump Unit Specifications
� Close coupled single stage centrifugal pump
� Lightweight aluminum alloy pump parts
� Anodized pump parts for corrosion resistance
� Stainless steel shaft
� Mechanical rotary seal
� Governor system for overspeed protection
� Strong polyethylene mounting board with rubber mounts
� 1 1/2″ (38 mm) NPSH or NH suction threads
� 1 1/2″ (38 mm) NPSH or NH discharge threads
� Fuel consumption 0.24 US gal/hour (0.9 L / hour)

Length 15 3/4″ (40 cm)
Width 10 3/4″ (27 cm)
Height 15 3/4″ (40 cm)
Weight 19.3 lbs (8.75 kg)

Features
� US Forest Service approved spark arrestor
� Integrated Low oil shut-off
� Inlet and outlet protective caps
� Foam solutions pumping capability

Option
� Thread protector 1 1/2″ (38 mm) NPSH, NH or 1/4-turn (ADP-A-FM15S, ADP-L-FM15SN or FA-4)

Maximum Pressure: 85 PSI (586 kPa)
Free flow: 68 US gals/min (256 L /min)
Maximum Head: 196′ (60 m)
